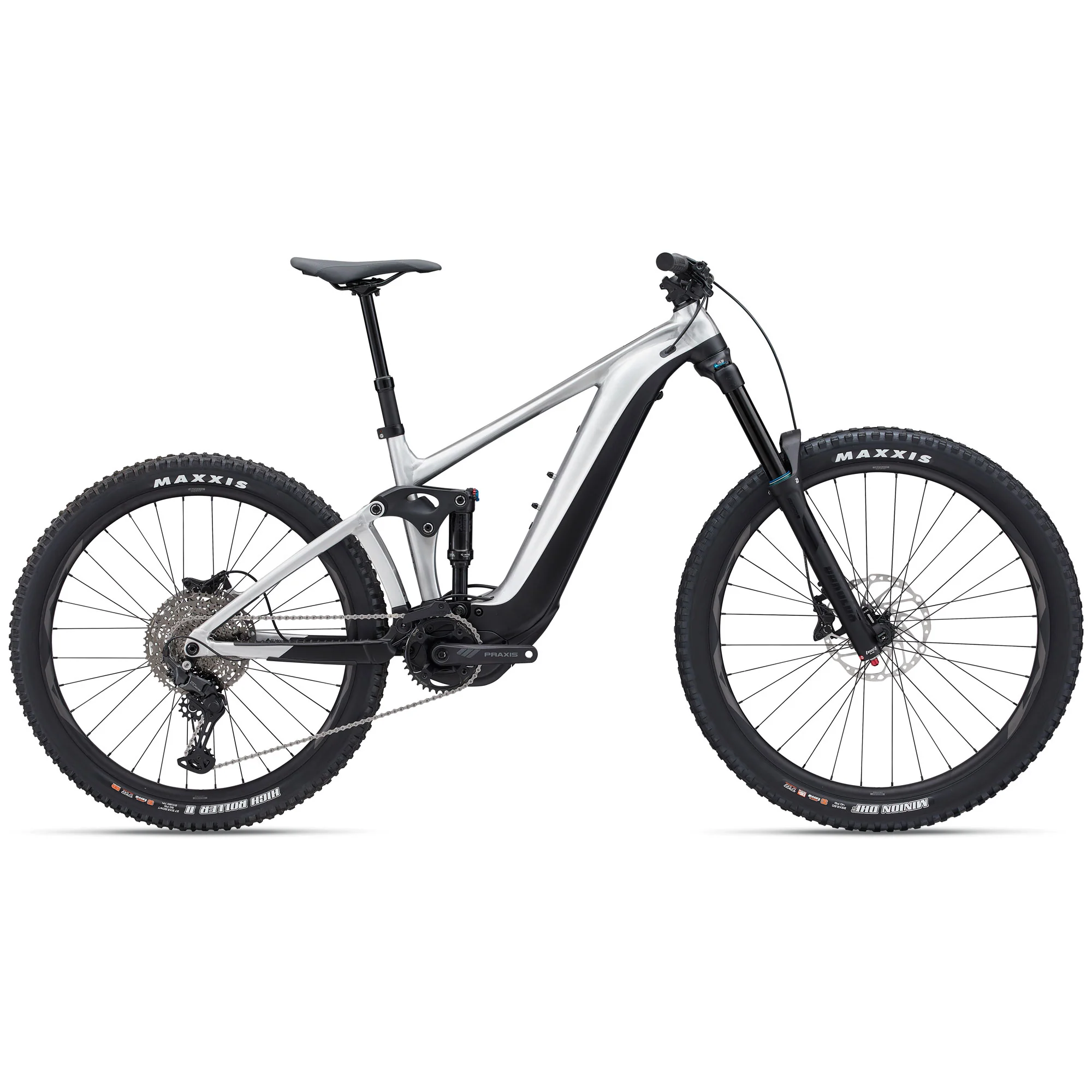

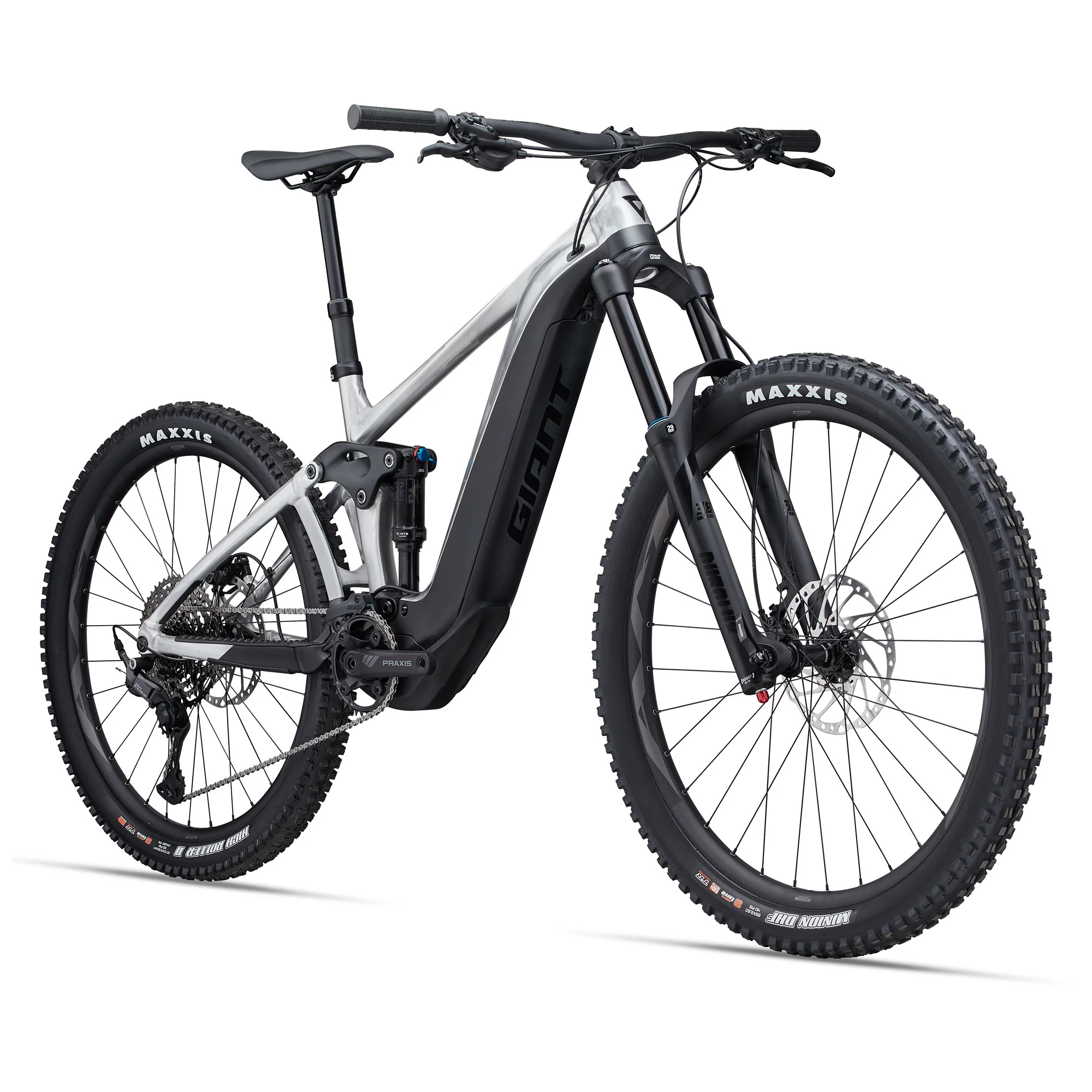

Giant Reign E+ 3 2024
About Giant Reign E+ 3 2024
Every trail, every steep climb, every thrilling descent. Nothing is out of bounds with the Reign E+. This proven trail ripper gives you the power to enjoy the best parts of the ride again and again.

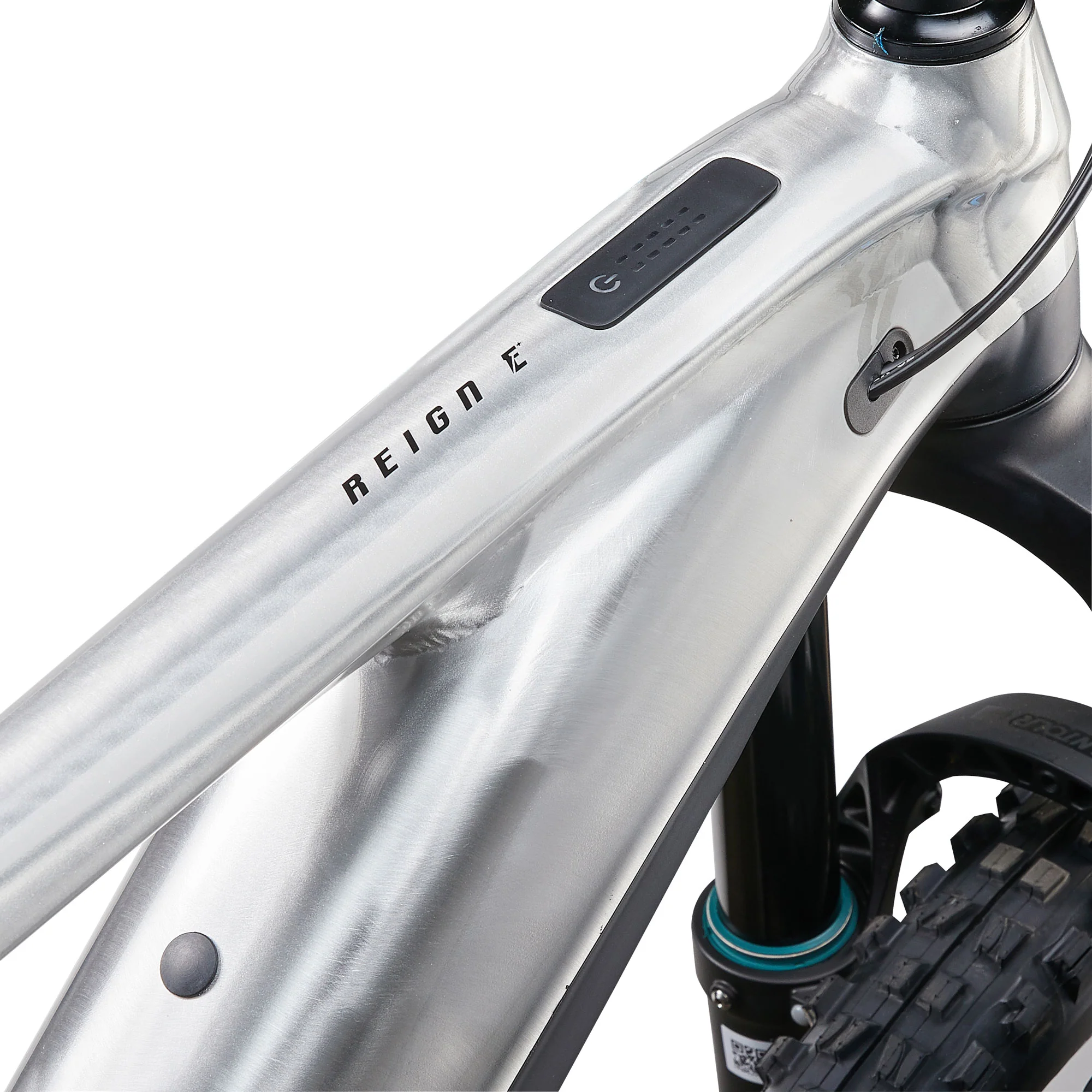

A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The frameset features geometry with a shorter rear end and longer reach. Control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A flip chip feature lets you adjust frame geometry for riding style and terrain.
Key Performance Factors

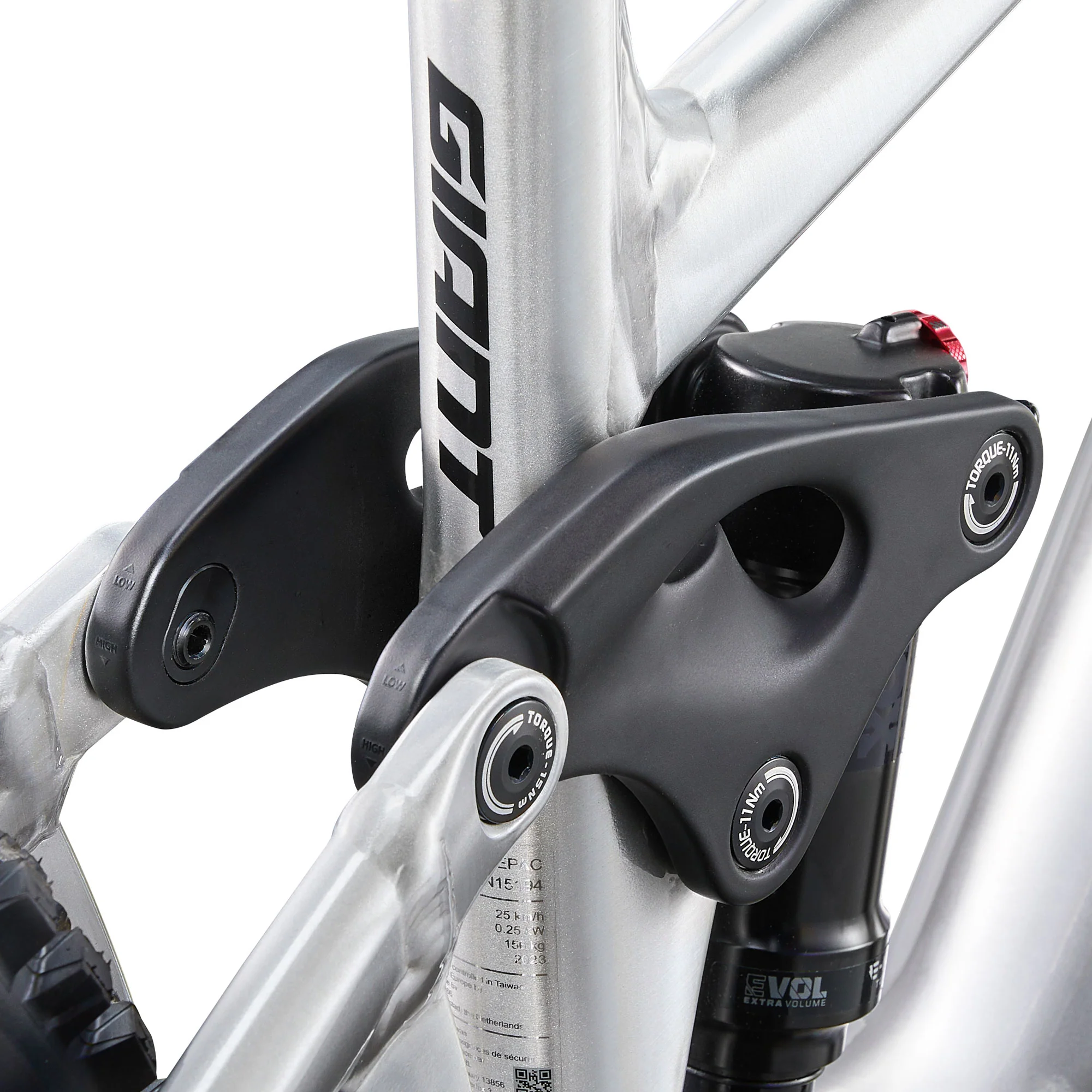

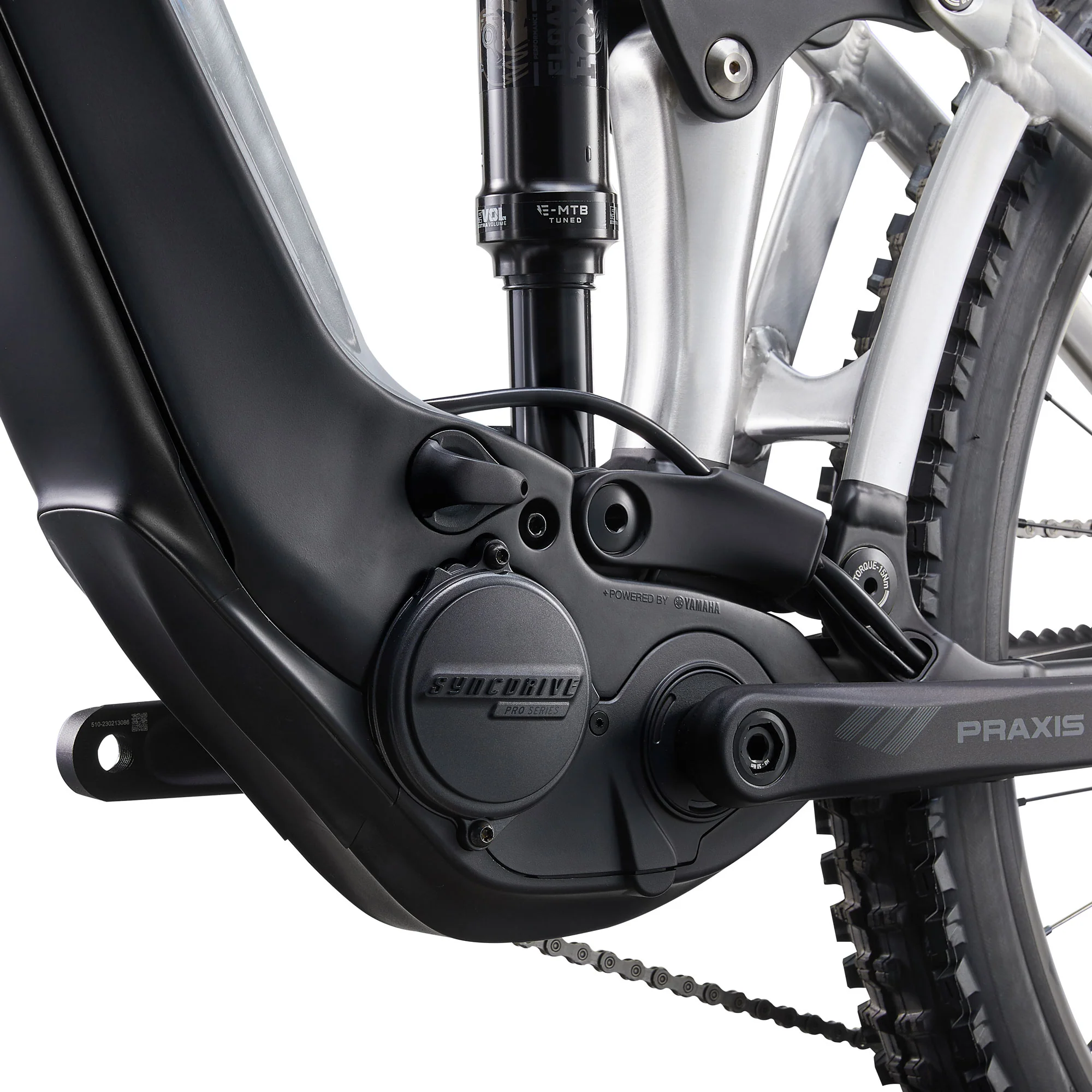

Trail technology: Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents. Updated geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.
Total control: RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power: Climb steep mountains and enjoy fun descents all day long with the new downtube-integrated EnergyPak featuring 800Wh of capacity.
Frame Geometry (units in mm unless otherwise indicated)
| Frame | S | M | L | XL |
| Seattube Length | 400 | 425 |
450 |
475 |
| Seattube Angle (Degrees) | 76.7/77.5 |
76.7/77.5 |
76.7/77.5 | 76.7/77.5 |
| Toptube Length | 569/568 | 595/594 | 622/621 | 649/648 |
| Headtube Length | 100 | 100 | 110 | 120 |
| Headtube Angle (Degrees) | 63.7/64.5 | 63.7/64.5 | 63.7/64.5 | 63.7/64.5 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Trail | 136/132 | 135/132 | 135/132 | 136/132 |
| Wheelbase | 1209/1210 | 1236/1237 | 1265/1266 | 1295/1296 |
| Chainstay Length | 457/455 | 454 | 454 | 454 |
| Bottom Bracket Drop | 25/15 | 25/15 | 25/15 | 25/15 |
| Stack | 636/632 | 635/632 | 645/641 | 654/650 |
| Reach | 425/430 | 450/455 | 475/480 | 500/505 |
| Standover Height | 785/789 | 772/776 | 771/775 | 768/772 |
| Stem Length | 40 | 40 | 50 | 50 |
| Crank Length | 160.0 | 160.0 | 165.0 | 165.0 |
| Wheel Size | F29"/R27.5" | F29"/R27.5" | F29"/R27.5" | F29"/R27.5" |
Low/High geometry relates to mountain bikes with the new two-position adjustable Advanced Forged Composite 'flip-chip' allowing riders to adjust frame geometry for their riding style and terrain. Bikes with this feature will come stock in the low position.
About Giant
Founded in 1972 by craftsmen and engineers with one goal: to create a better cycling experience for people around the world by following their three guiding principles: craftsmanship, innovation and inspiration. Giant are a market leader in the bicycle industry, using their innovative manufacturing capabilities to produce quality, lightweight products at an affordable price. They are recognised as the world’s largest bicycle manufacturer.
